Upgraded to a 3 stage battery charger and converter, new power distribution center, inverter, propane detector, fluorescent lighting, back-up lights and other stuff.
CLICK A THUMBNAIL TO VIEW THE FULL SIZE PICTURE. YOU CAN SCROLL THROUGH THE FULL SIZED PICTURES BY MOVING YOUR CURSOR TO THE LEFT OR RIGHT EDGE NEAR THE CENTER AND PRESSING THE ARROW, OR TAPPING THE EDGE (MOBILE DEVICES).

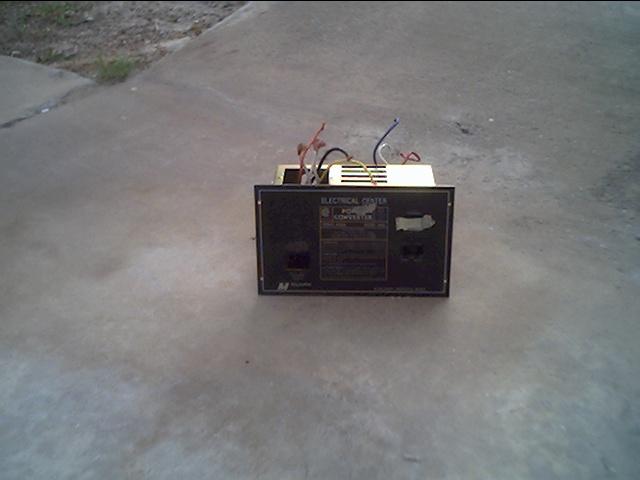

Old converter removed

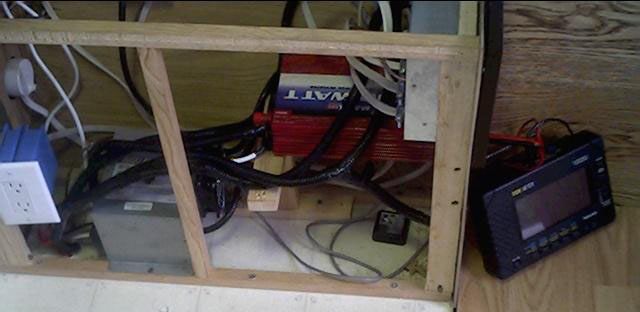

Building the cabinet and install all new components and wiring

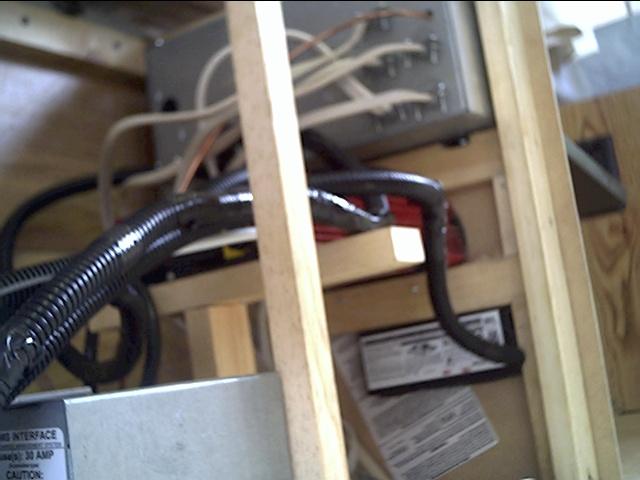

Wiring

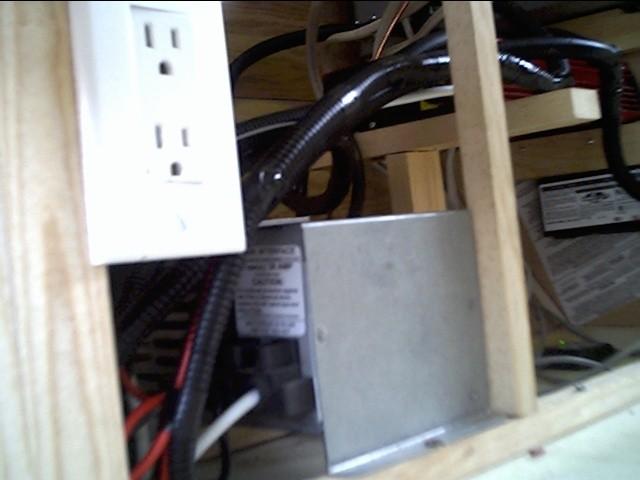

Progressive Dynamics 3 stage battery charger/converter with Charge Wizard

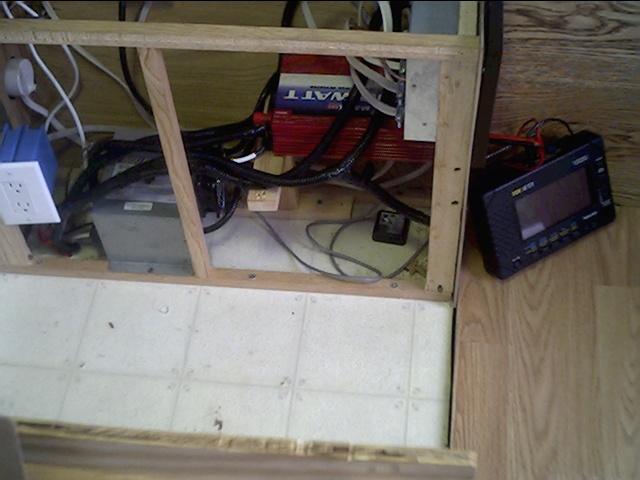

Testing the electrical components

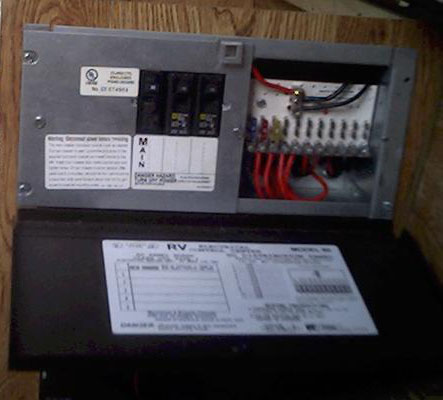

Electrical Distribution Panel

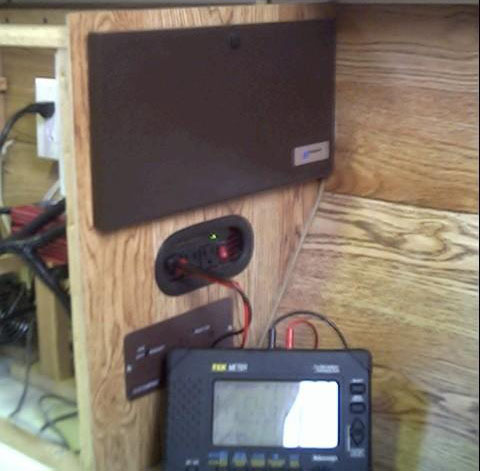

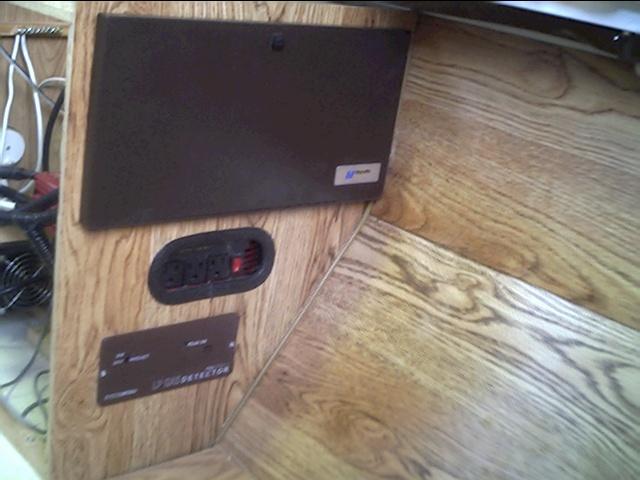

Inverter plug (center) and propane leak detector/shut off control (bottom)

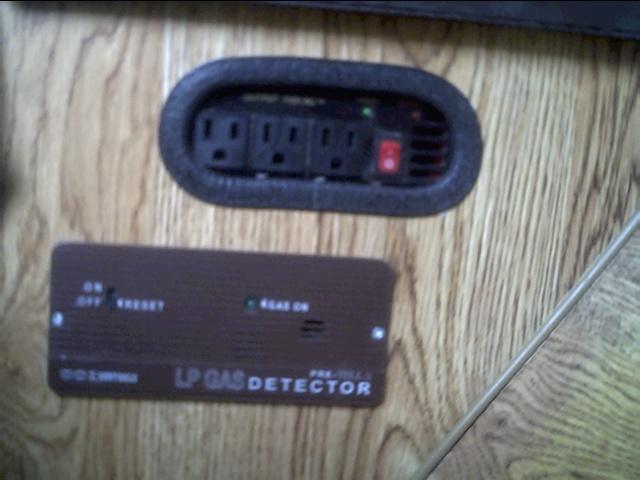

Inverter and propane leak detector

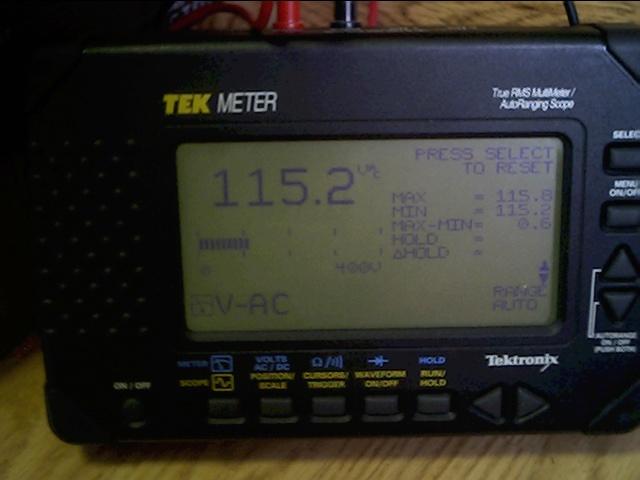

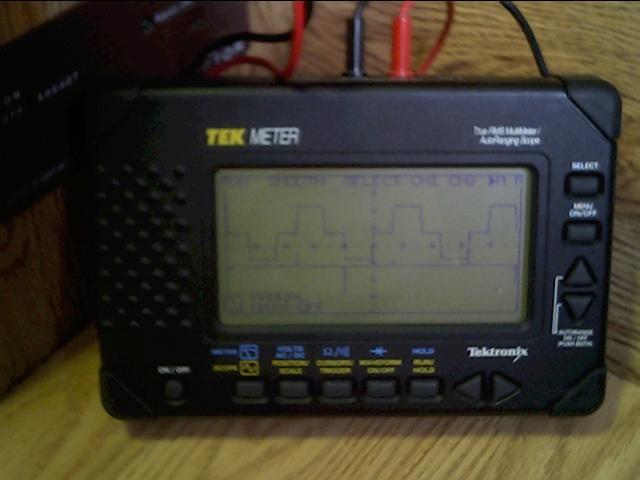

Verifying the inverter produces a modified sine wave
Verifying the inverter produces a modified sine wave
110 circuit works

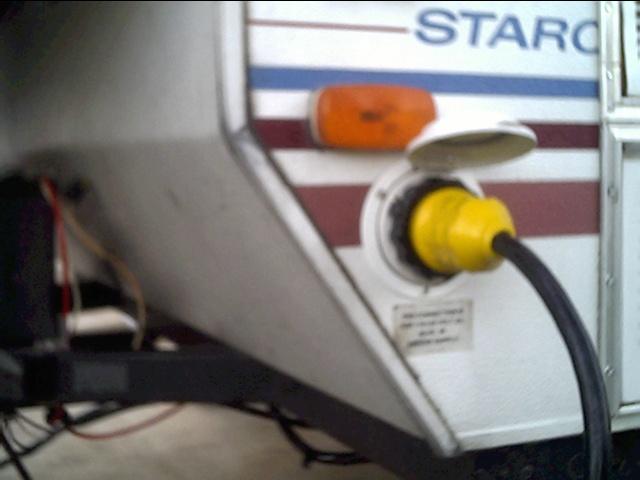

Marinco Power Cord installation
Detachable Marinco Power Cord

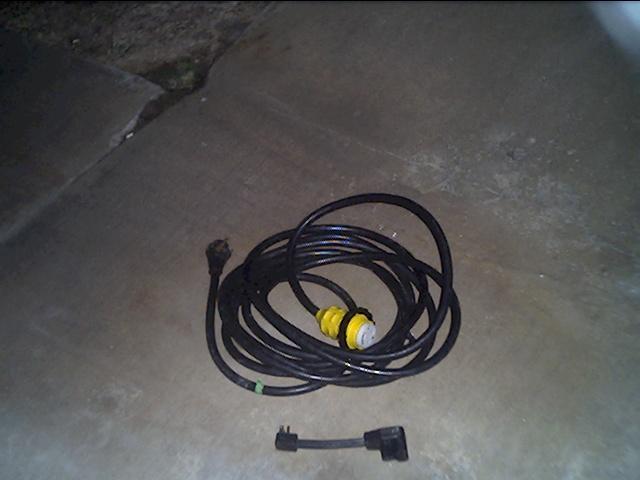

Power cord rolled up for storage

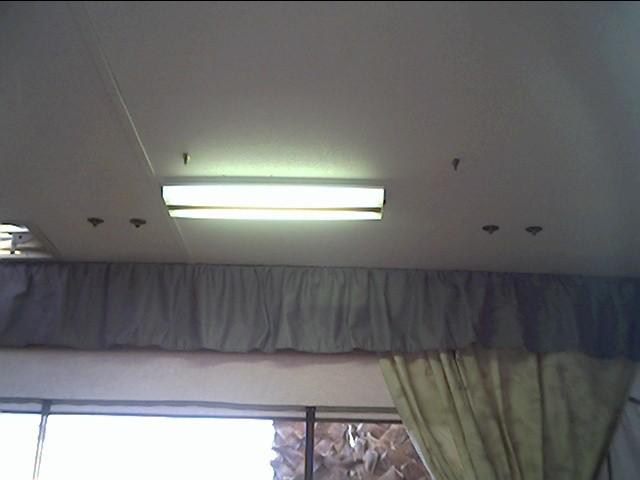

Incandescent light fixtures replaced with ThinLite Fluorescent fixtures
Upgrading hitch plug to Bargman 7 pin

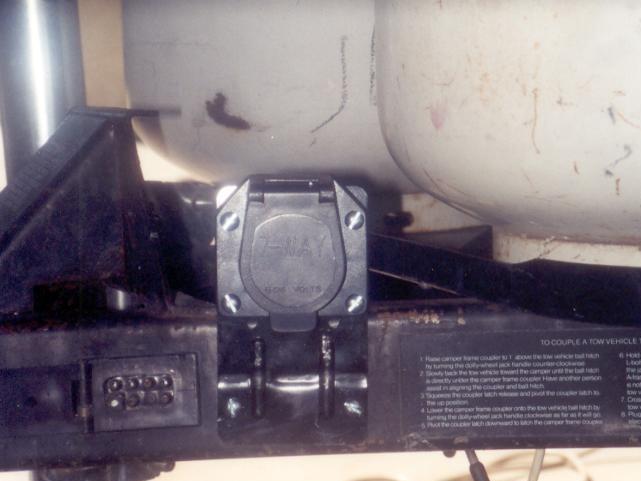

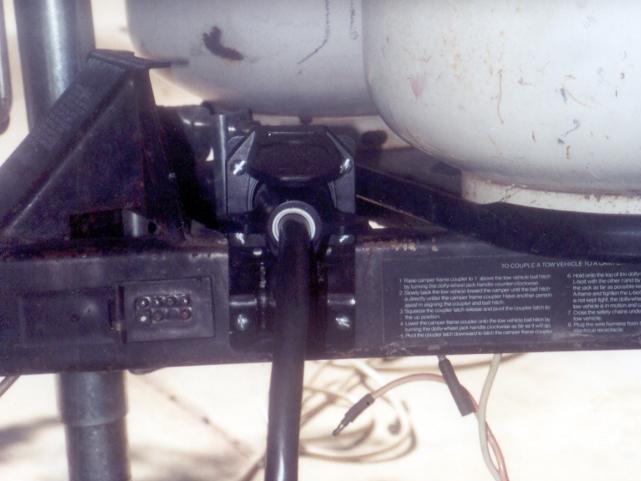

New Bargman plug and receptical

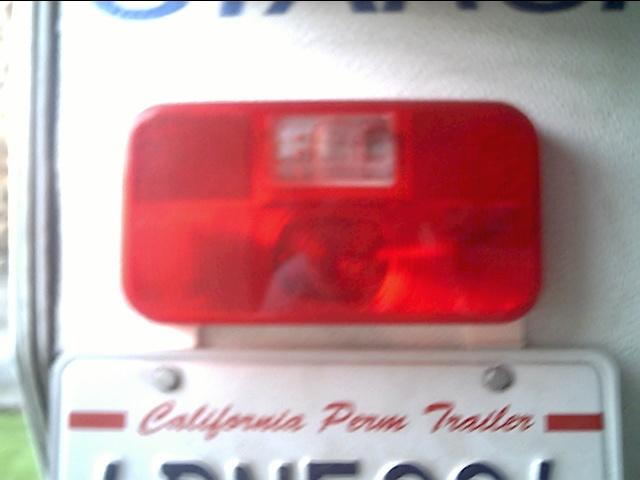

Install rear tail light fixtures with back-up lights
