In 2003 we gutted our camper. It really had little in the way of amenities — so we added everything a large travel trailer has, to include a shower.
CLICK A THUMBNAIL TO VIEW THE FULL SIZE PICTURE. YOU CAN SCROLL THROUGH THE FULL SIZED PICTURES BY MOVING YOUR CURSOR TO THE LEFT OR RIGHT EDGE NEAR THE CENTER AND PRESSING THE ARROW, OR TAPPING THE EDGE (MOBILE DEVICES).

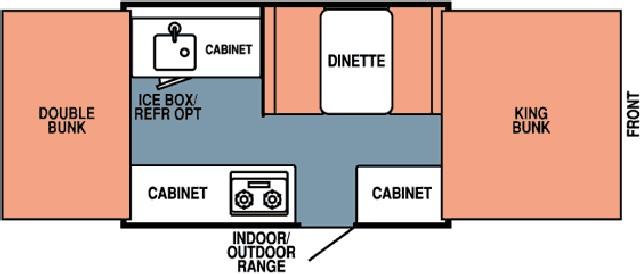

Original floor plan.
Removing everything from the interior.

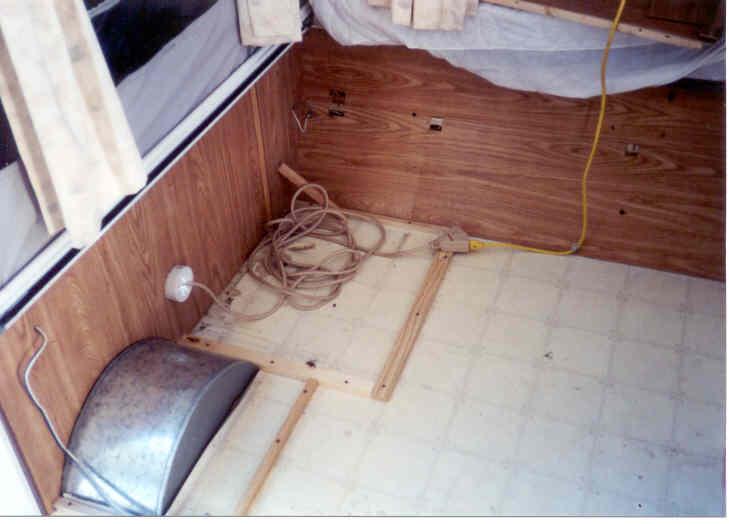

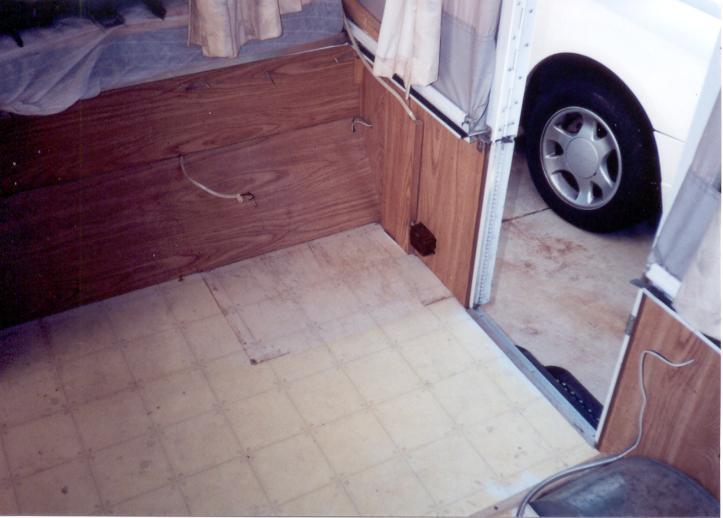

Prepping for laminate flooring.

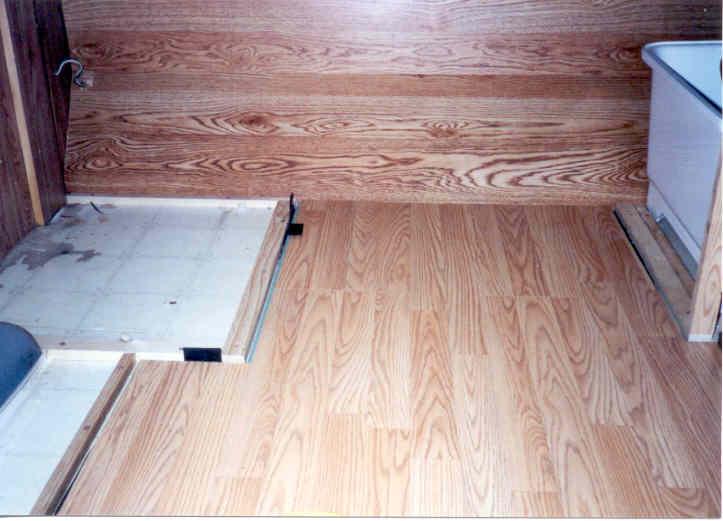

Installing laminate flooring.

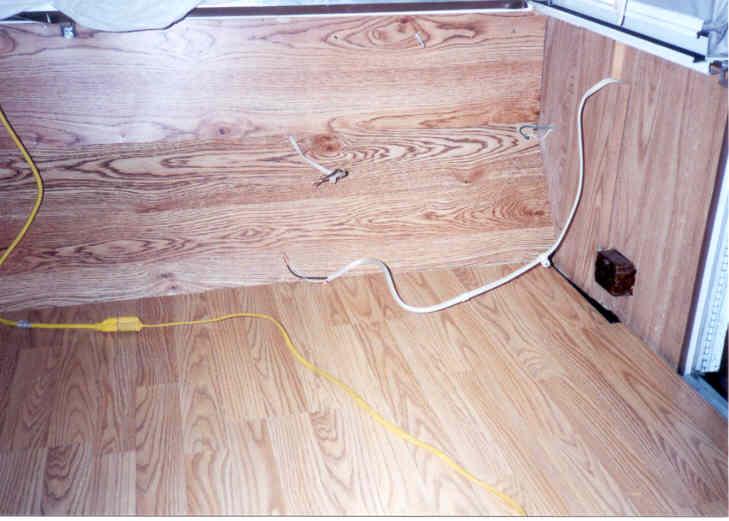

Floor completed.

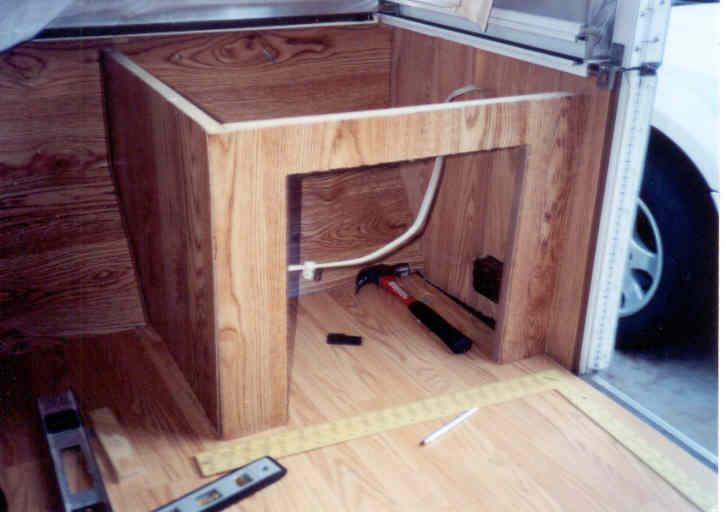

Building front cabinet.
Front cabinet done. We built counter tops from scratch.

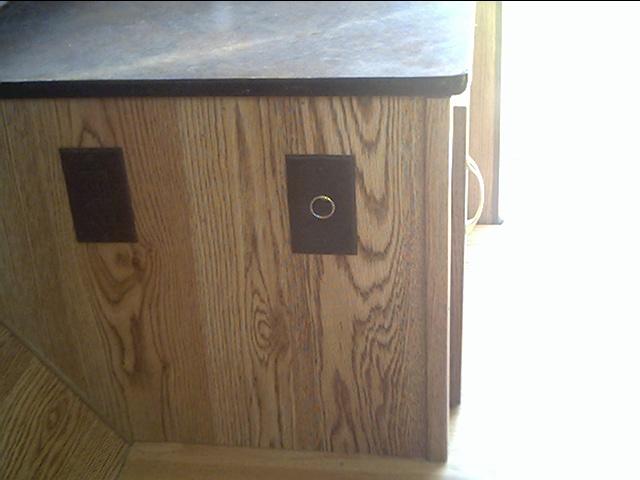

Electrical outlets installed (110 volt and 12 volt).

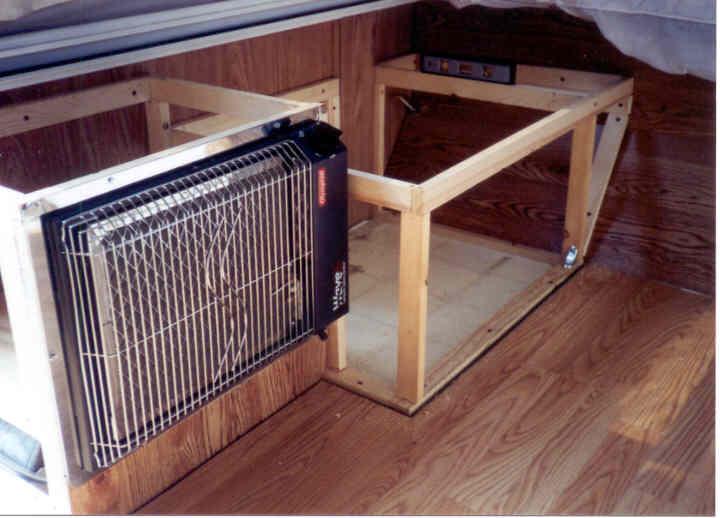

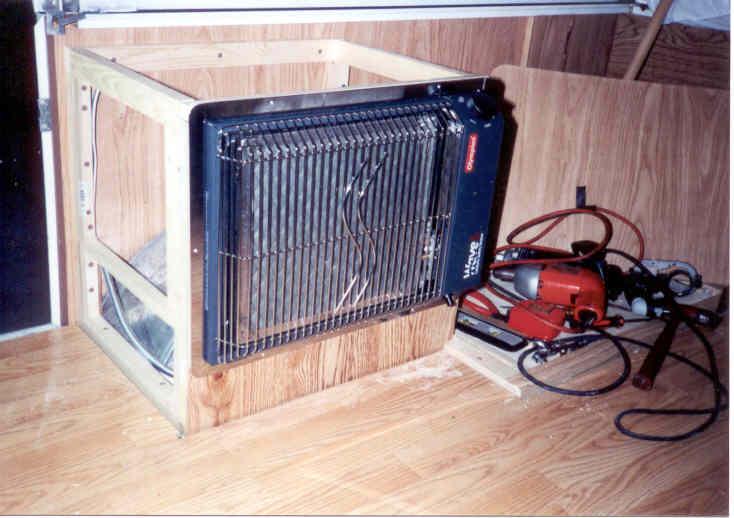

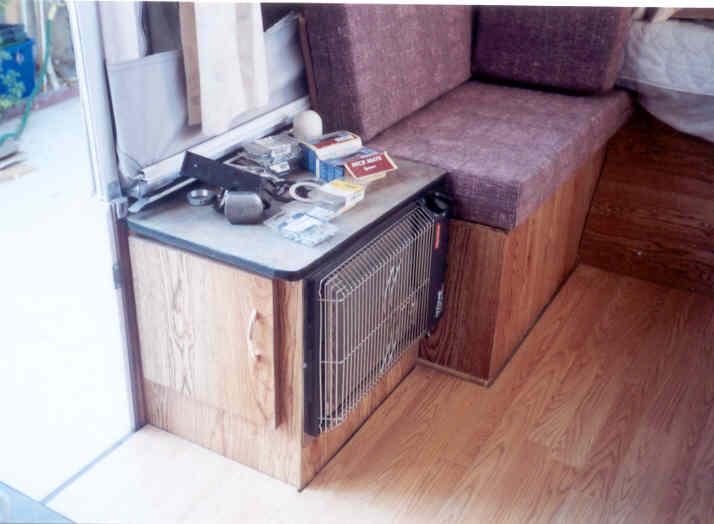

Building rear curbside cabinet and dinette seat. Wave 6 catalytic heater is built into the cabinet.
Another view of rear curbside cabinet.

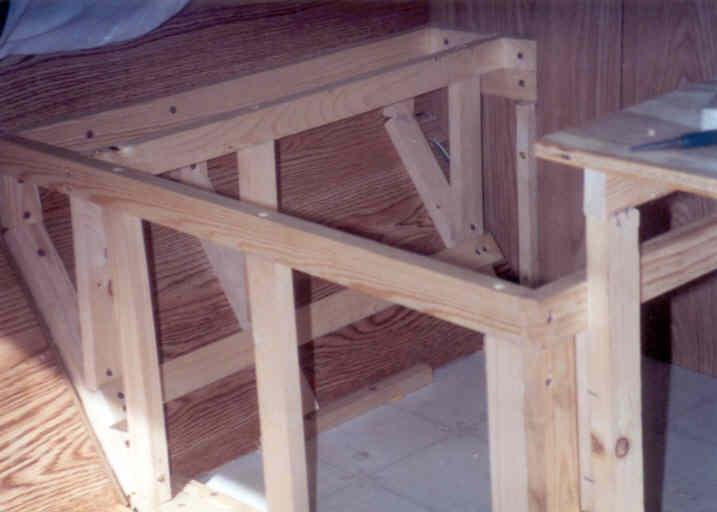

Framing street side rear dinette seat, which will contain the shower.

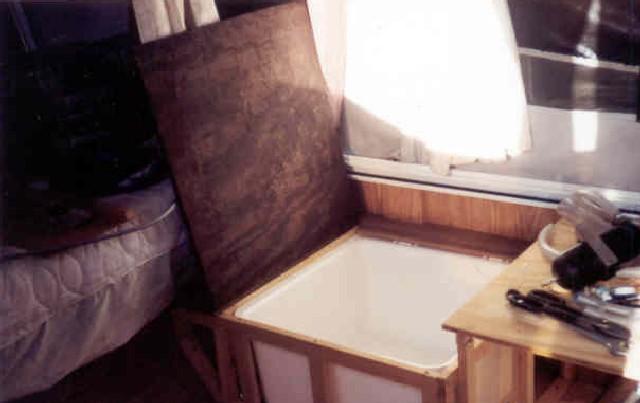

Installing utility sink to be used as a shower.

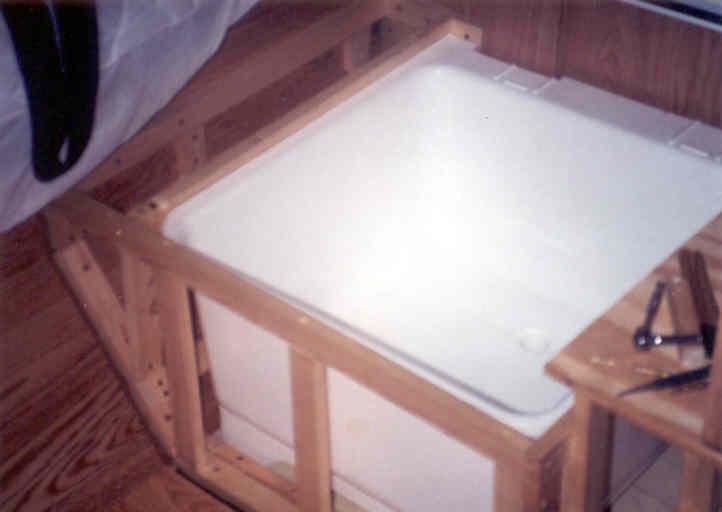

Utility sink as shower tub.

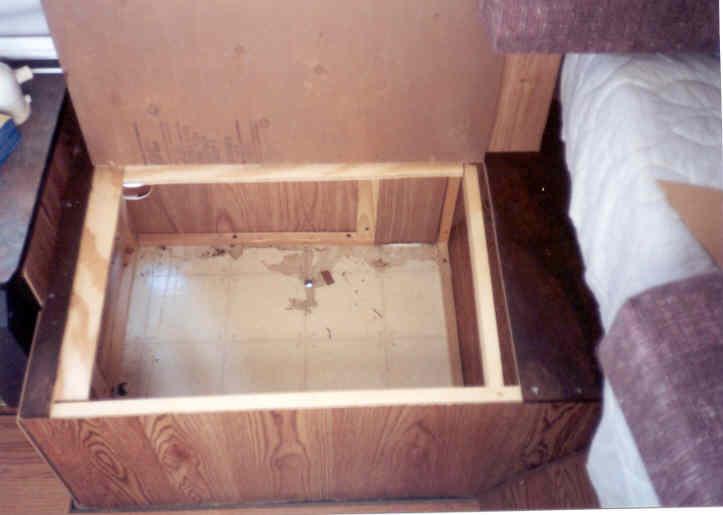

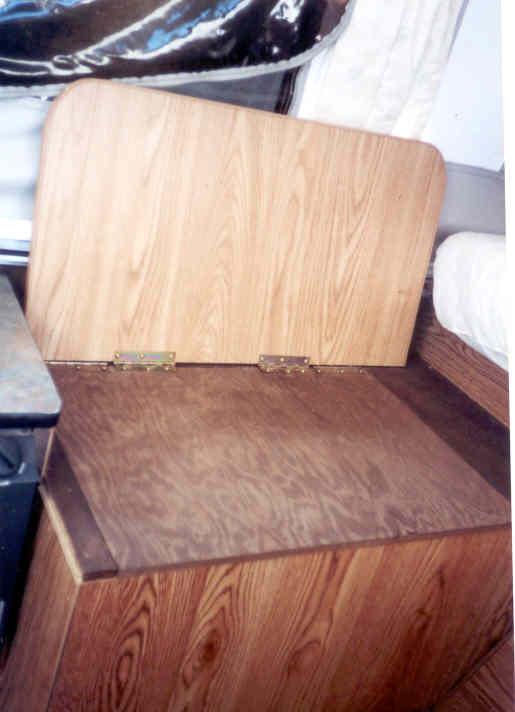

Finishing the curbside seat with storage area.

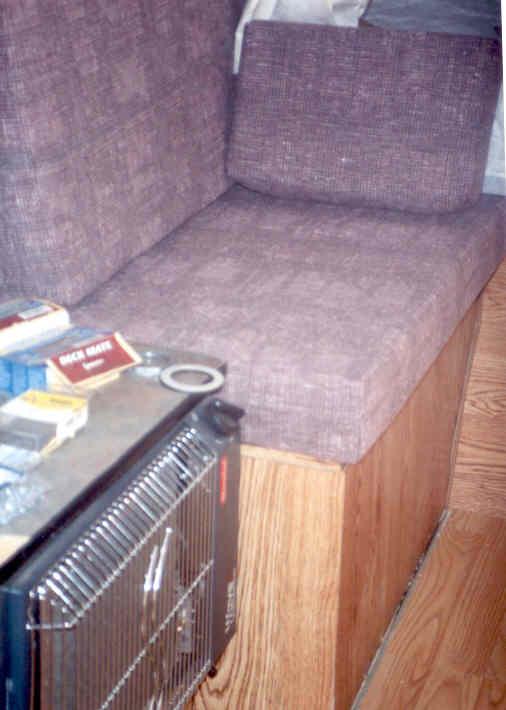

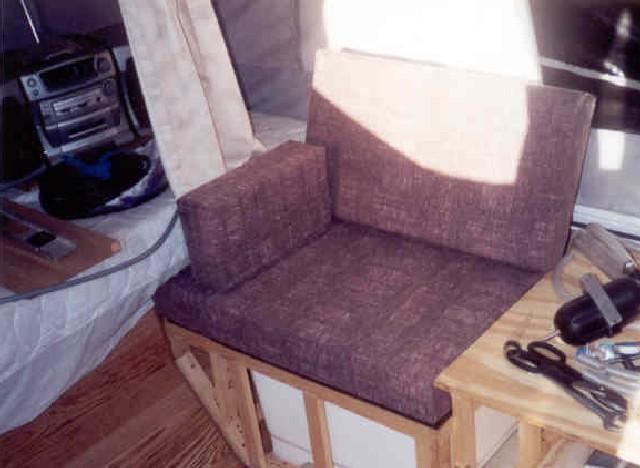

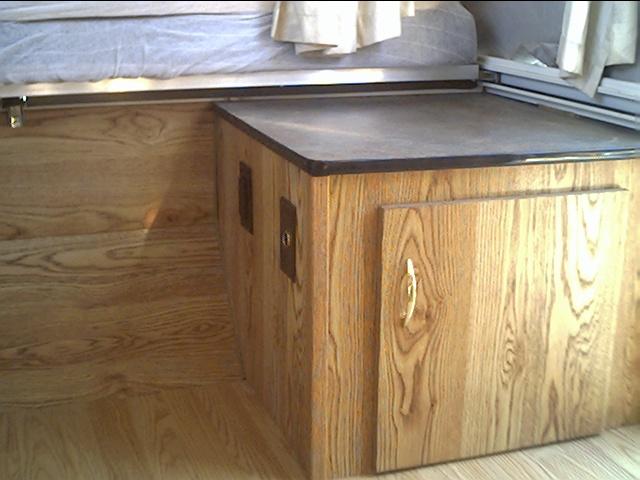

Curb side seat.
Rear curb side area done.

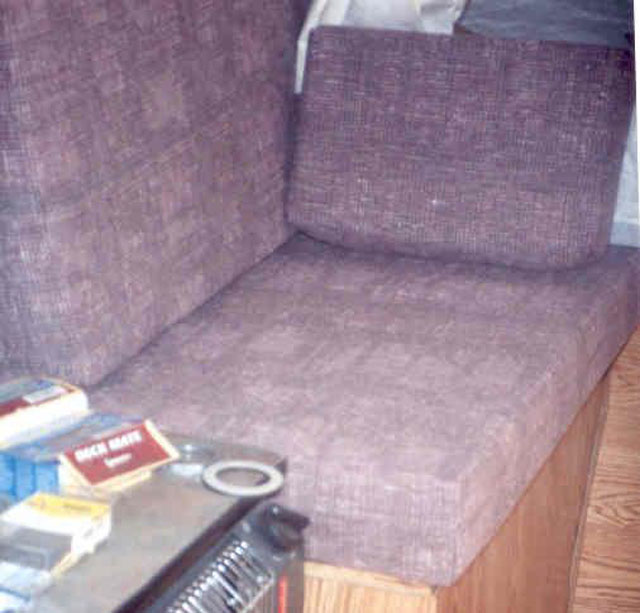

Rear curb side seat.
Rear curb side seat.
Rear street side seat with shower underneath.

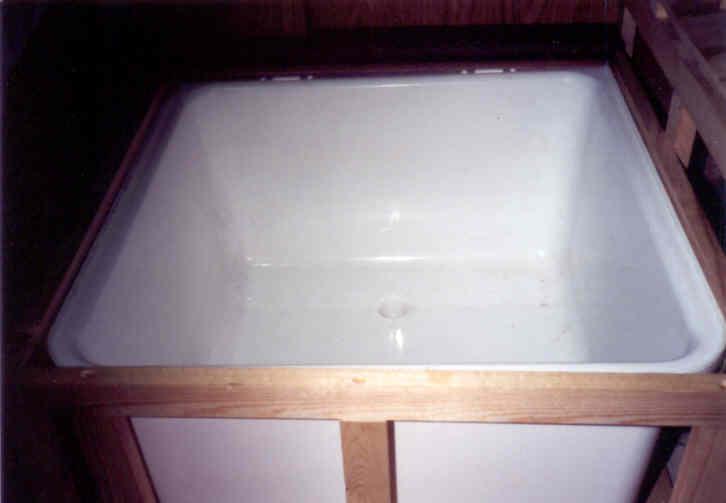

Shower tub.

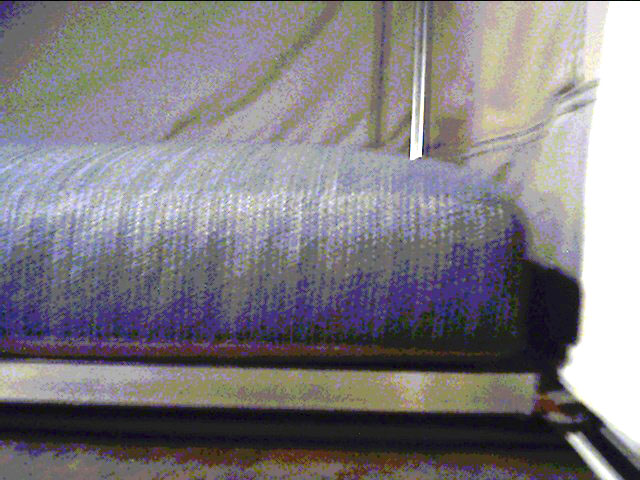

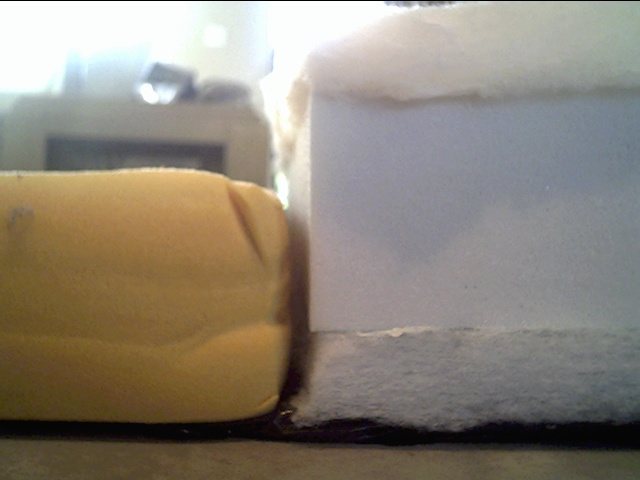

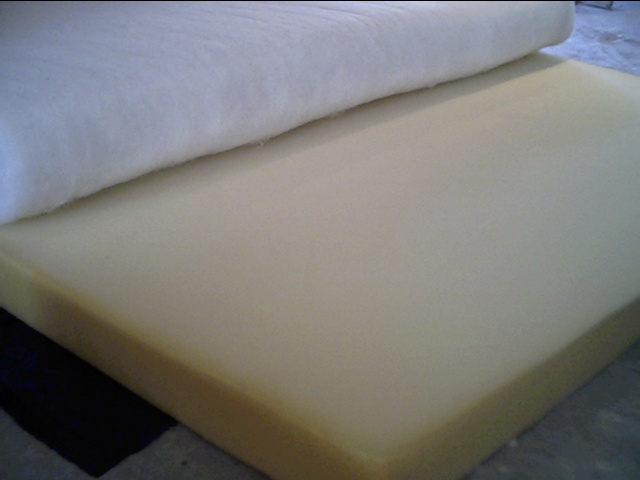

Old bed foam (left). New foam (right).

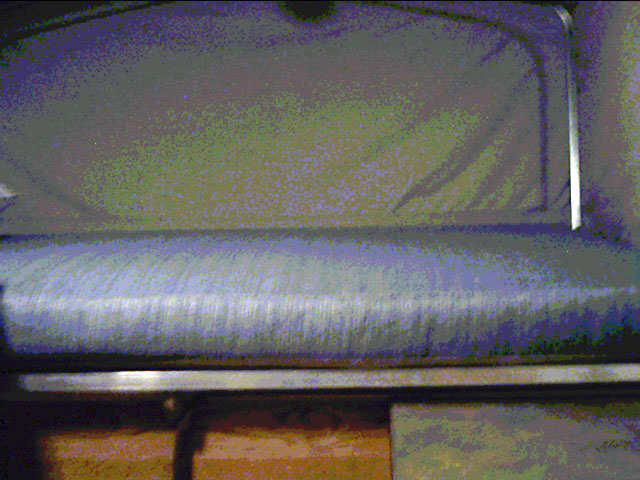

Old foam on bottom for comparison.
New bed.
New bed.

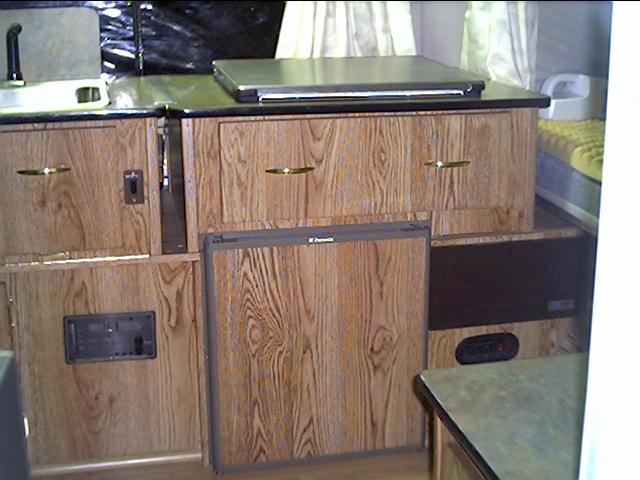

Stove, sink, and refrigerator on front street side of camper.

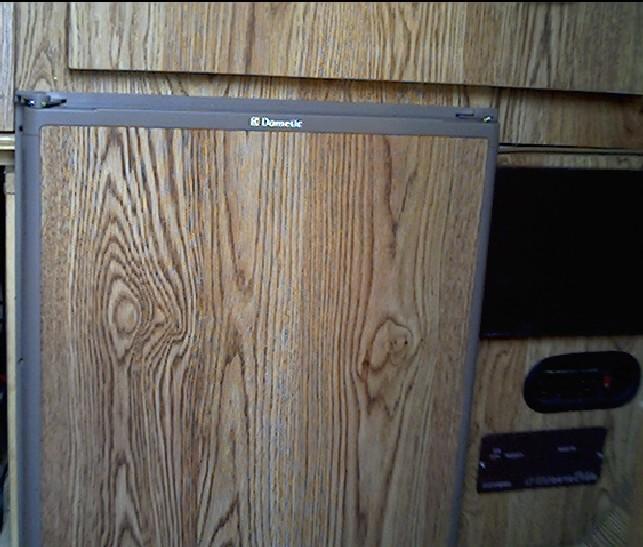

Refrigerator.

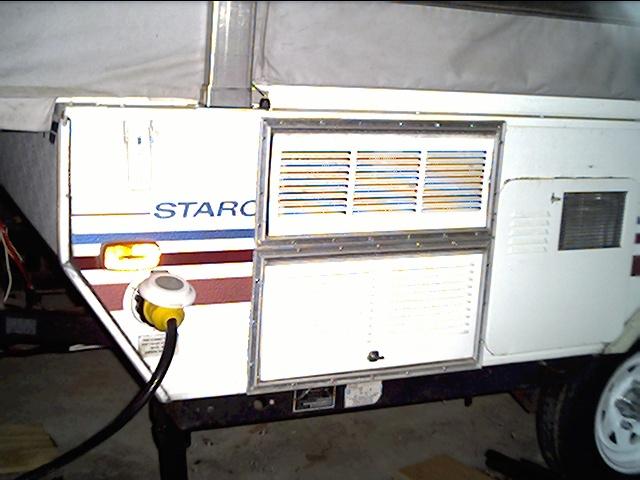

Exterior refrigerator vents.

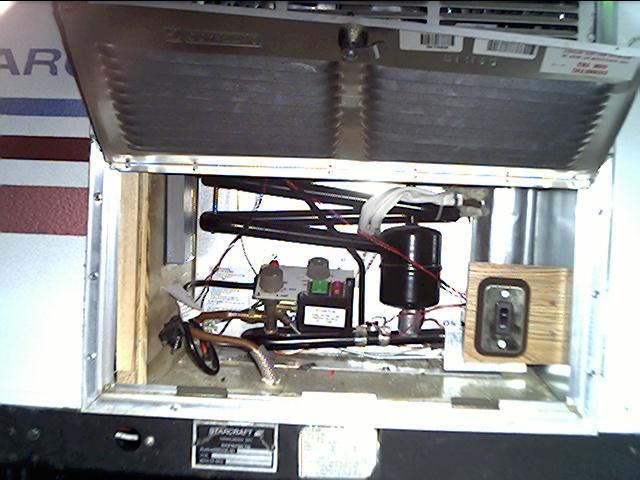

Exterior view of refrigerator with vents removed.
12 volt fan to help cool refrigerator.

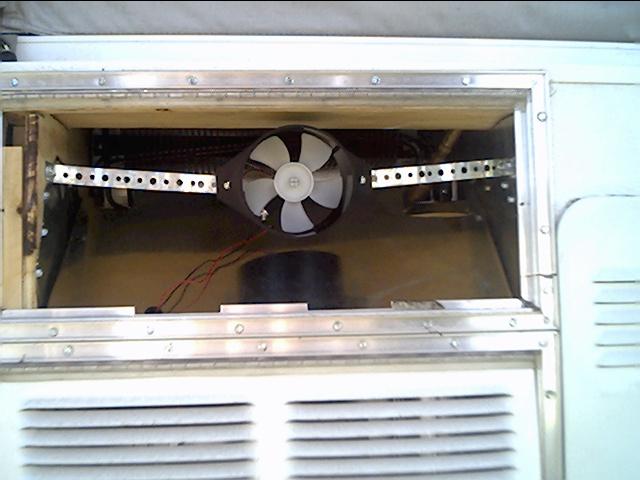

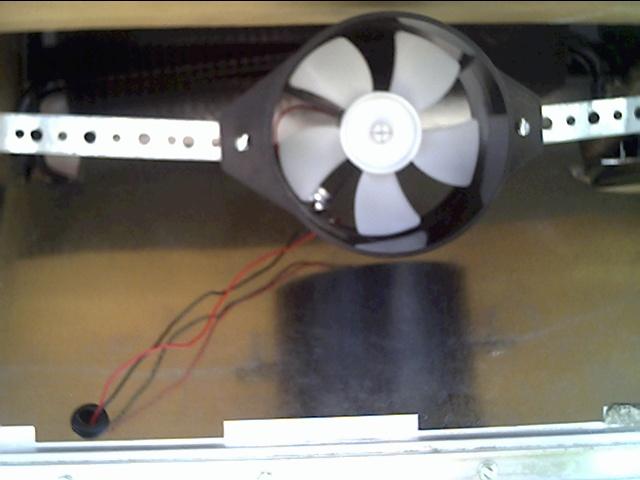

Close up of 12 volt fridge fan.

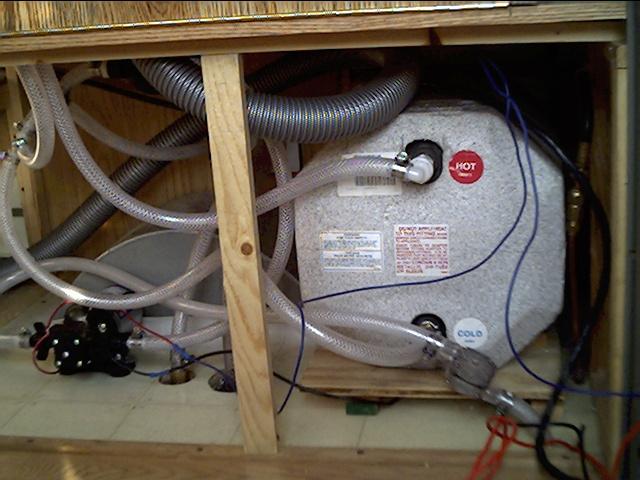

Water heater under sink.

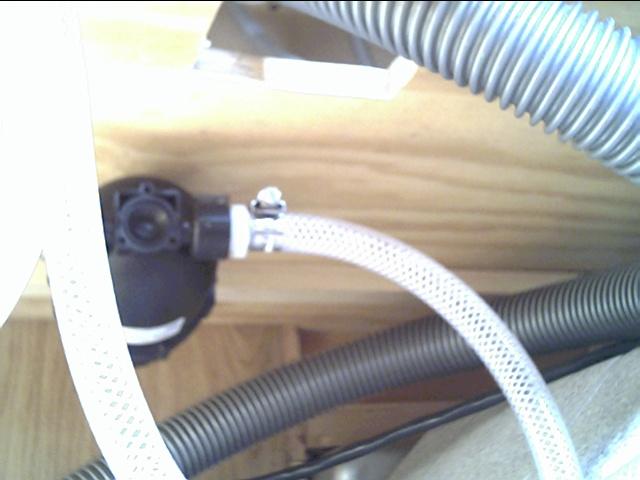

Accumulator and plumbing under sink.

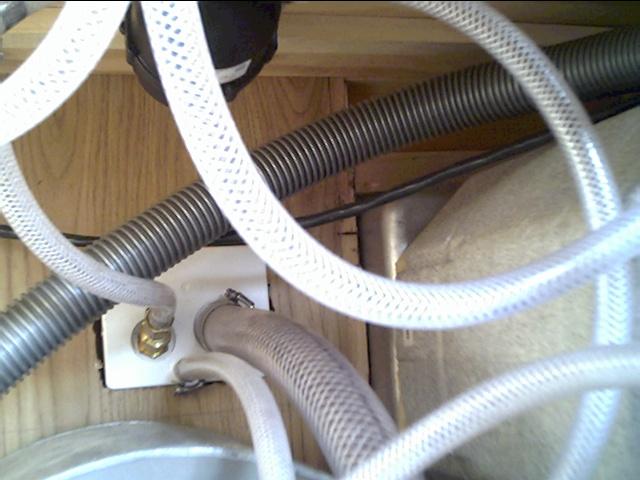

Plumbing.

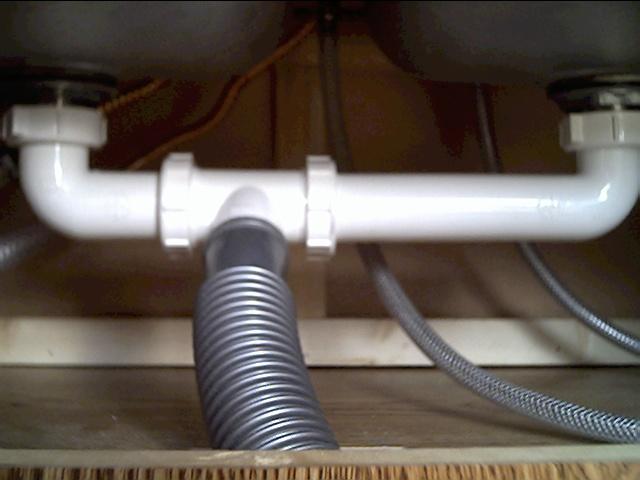

Double sink drain.

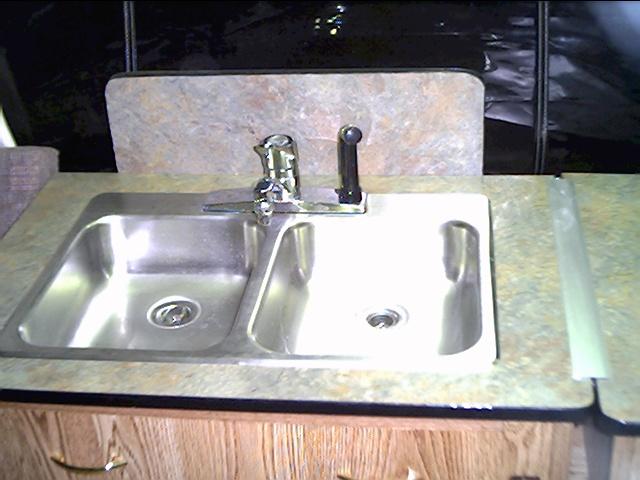

Double sink.

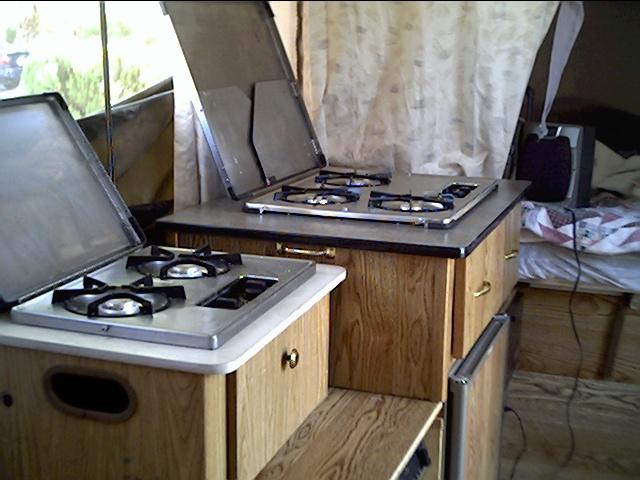

Old stove (front) new stove rear.

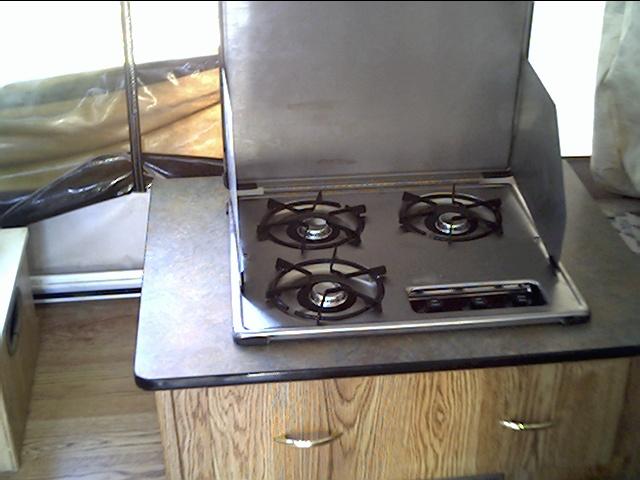

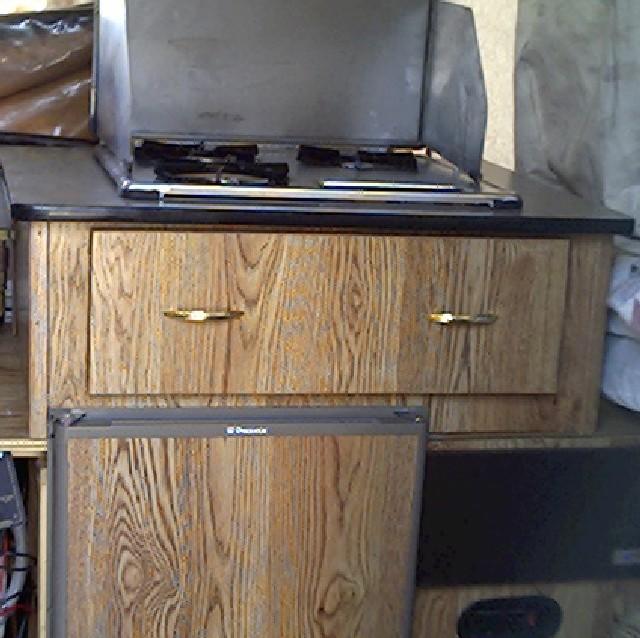

Stove and storage above refrigerator. The stove folds over for storage.

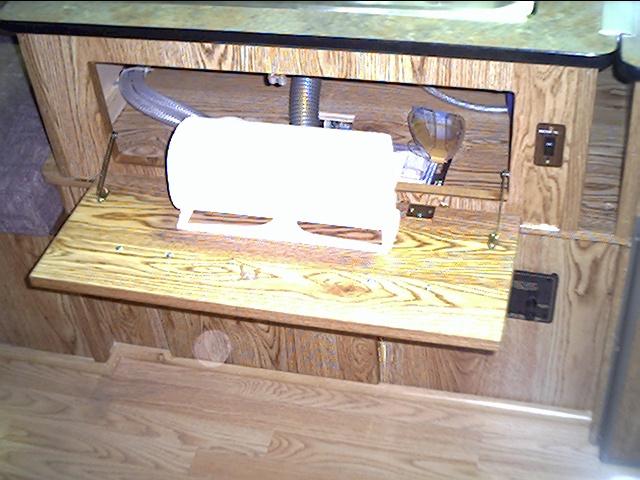

Door below sink opens for access to paper towel holder.

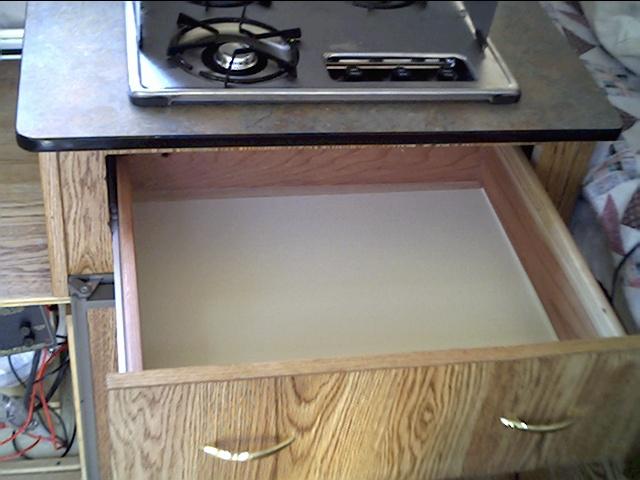

Drawer below stove.

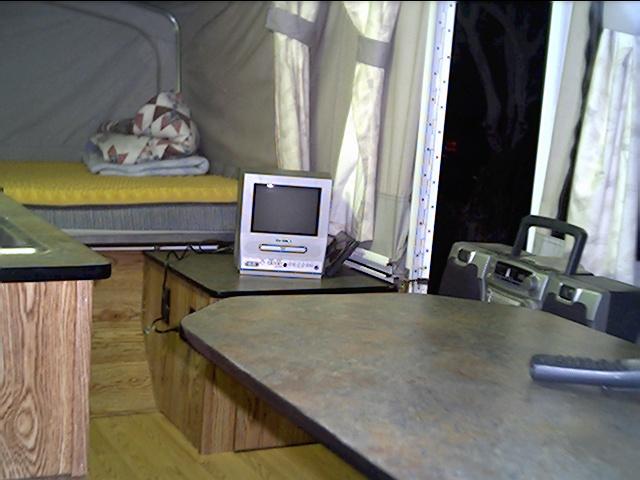

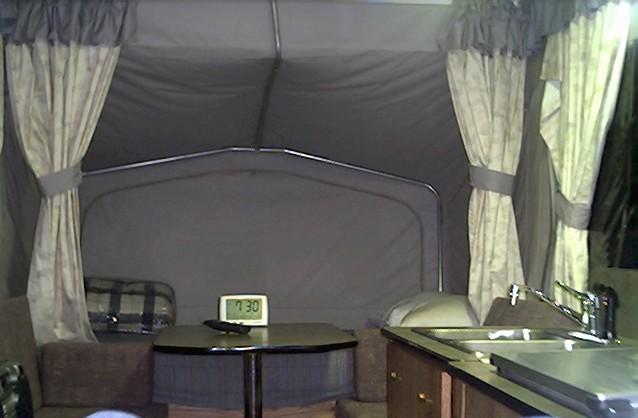

View of Dinette table, sink and stove.

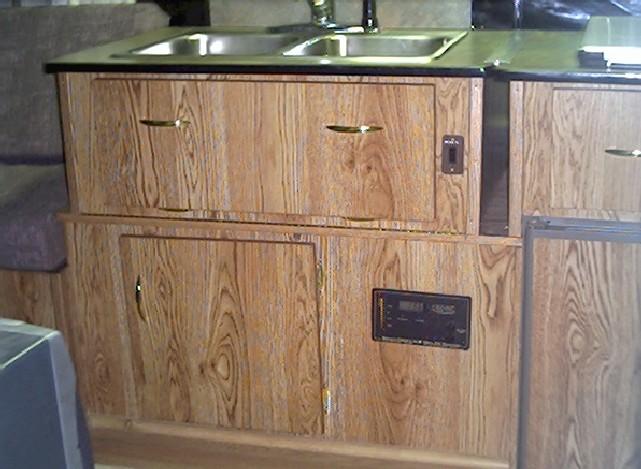

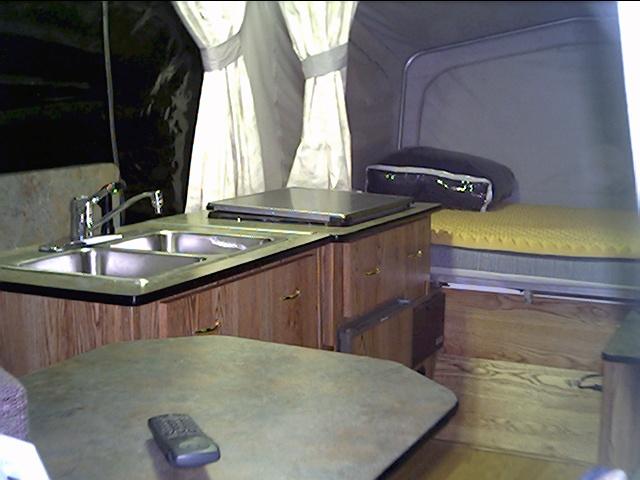

Sink and cabinet.
View of front cabinet.

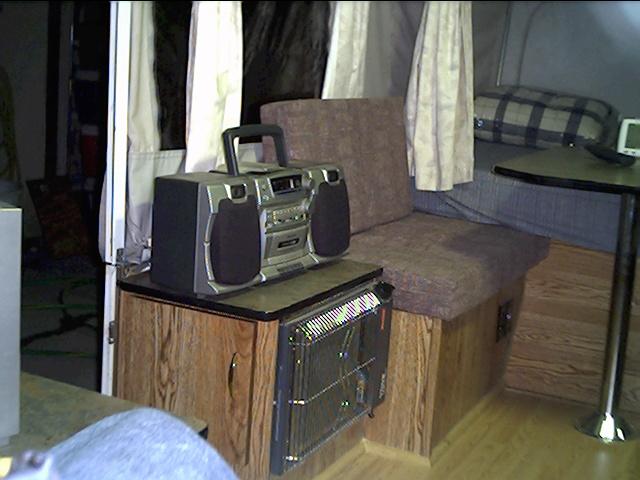

View of curb side cabinet & seat.
View of refrigerator and stove.
View of rear bunk.

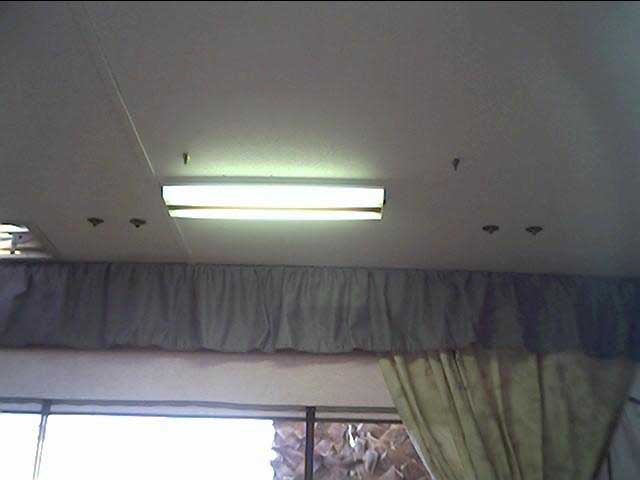

New fluorescent lighting.
