Raised the camper body to accommodate larger tires. Larger tires allowed me to raise the GVWR from 1090 lbs to 2000 lbs, which was the axle rating. The previous rating was limited by the tire load range.
CLICK A THUMBNAIL TO VIEW THE FULL SIZE PICTURE. YOU CAN SCROLL THROUGH THE FULL SIZED PICTURES BY MOVING YOUR CURSOR TO THE LEFT OR RIGHT EDGE NEAR THE CENTER AND PRESSING THE ARROW, OR TAPPING THE EDGE (MOBILE DEVICES).

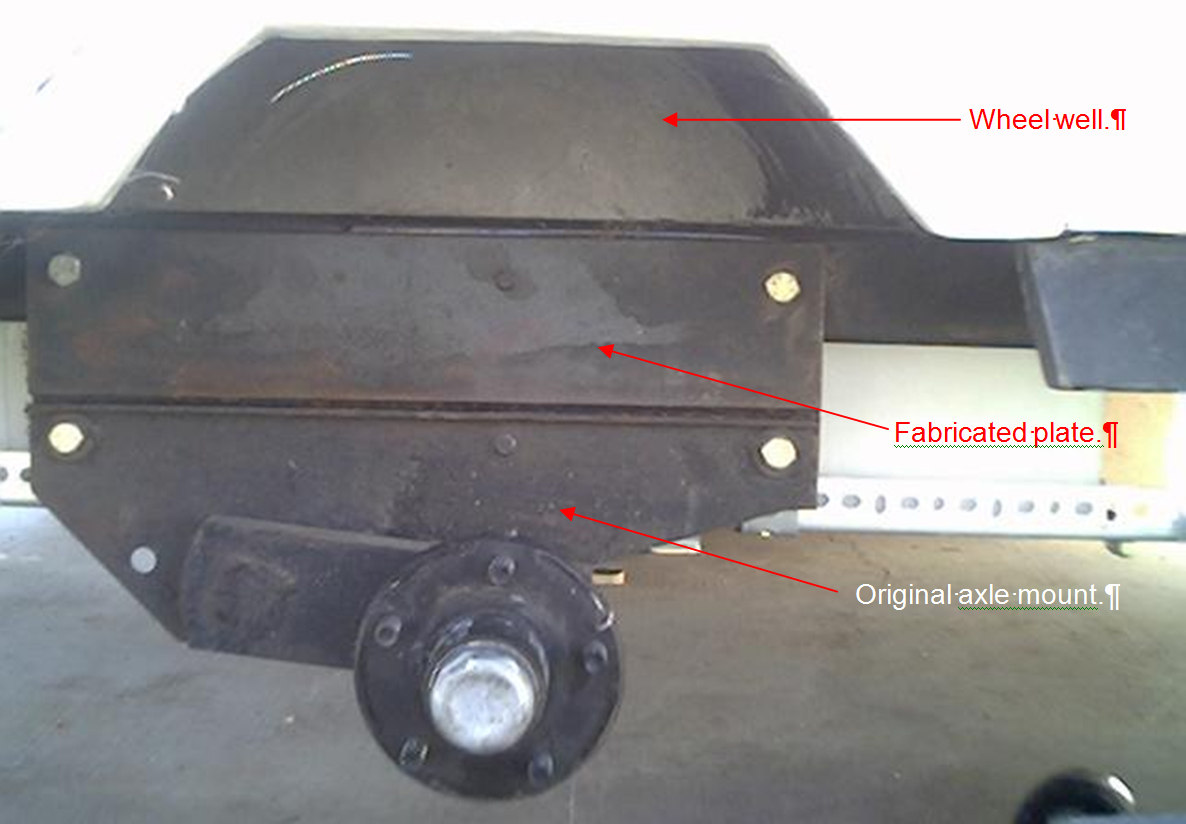

Steel Plate fabricated and mounted to frame to raise the camper box higher above the axle

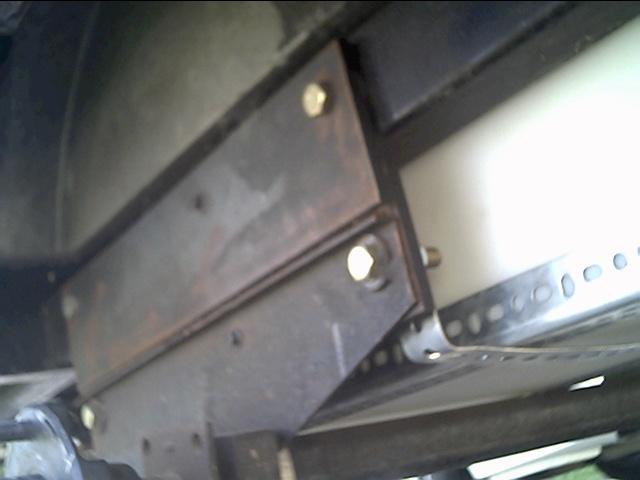

Axle Plate close-up

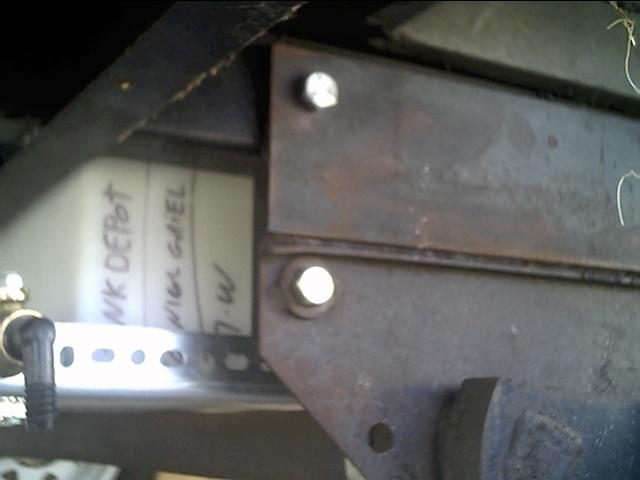

Close-up of axle mount bolted to bottom of riser plate.

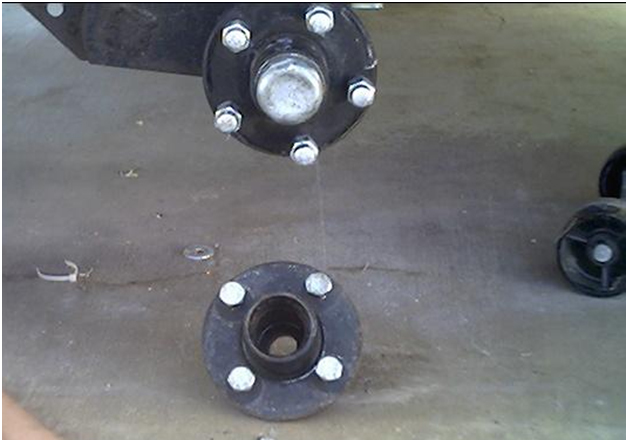

New hubs installed to mount the larger wheels (from 4 lug to 5 lug)

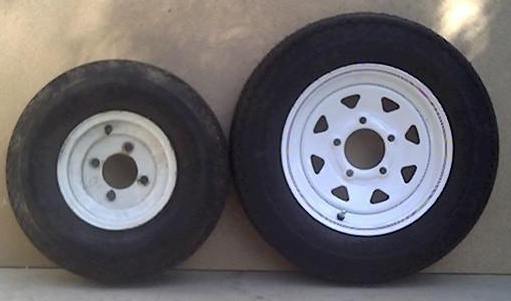

New larger tire on the right

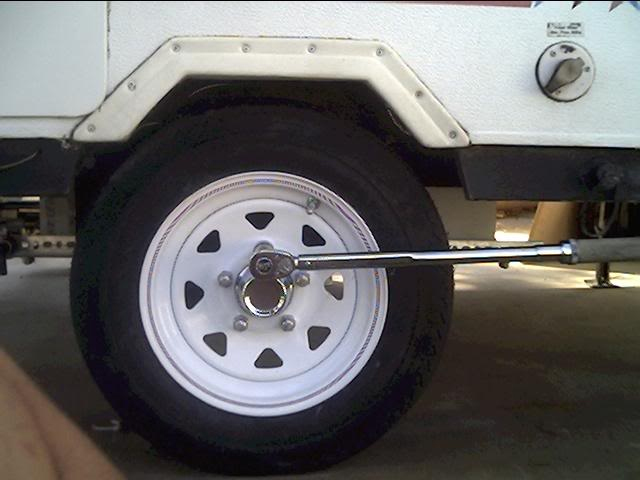

Torquing Wheel
Finished. Old tire (left) as a comparison. BAL single wheel chock keeps trailer wheel secure.

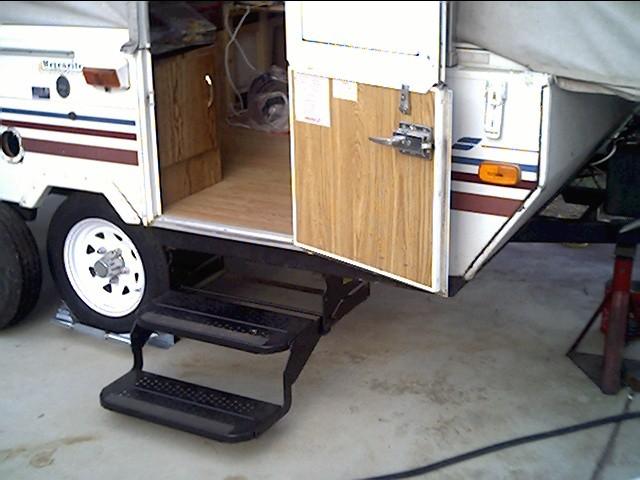

New step was required, as the trailer body is now 4″ above the original axle mount and the larger tires raised it another 4″ or so.
