CLICK A THUMBNAIL TO VIEW THE FULL SIZE PICTURE. YOU CAN SCROLL THROUGH THE FULL SIZED PICTURES BY MOVING YOUR CURSOR TO THE LEFT OR RIGHT EDGE NEAR THE CENTER AND PRESSING THE ARROW, OR TAPPING THE EDGE (MOBILE DEVICES).

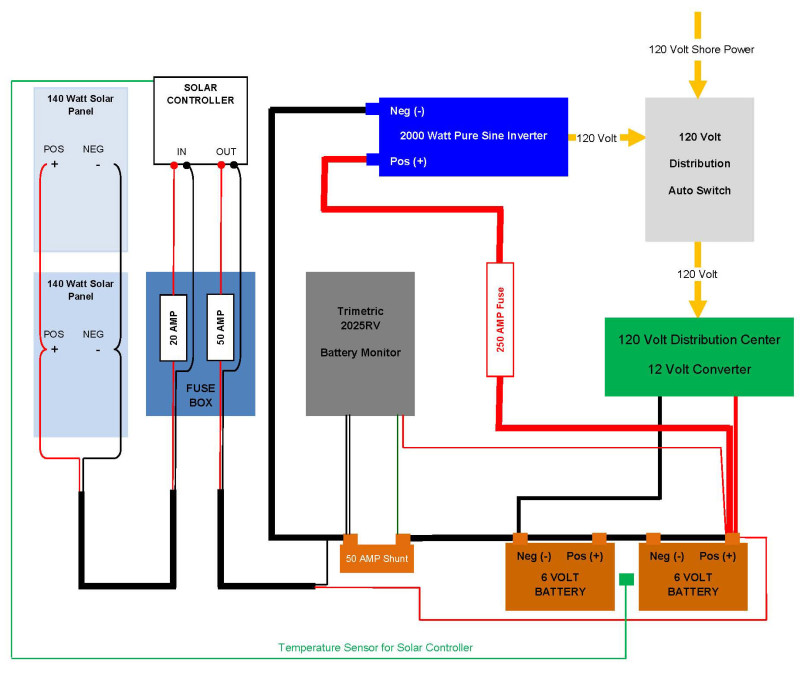

Electrical Diagram / Flow Chart
Two Kyocera 140 Watt Panels
Two Kyocera 140 Watt Panels
Solar Controller (L) and Breaker Panel (R)
Samlex 2,000 watt pure sine wave inverter
Inverter, 250 amp fuse and 2/0 battery cables
250 Amp fuse (foreground) in wired inline to the positive 12 volt circuit of the inverter.
Dual 6 volt batteries
Dual 6 volt batteries
Dual 6 volt batteries
Shut for TriMetric Battery Monitor
Shunt for Trimetric
TriMetric 2025RV Battery Monitor
Powermax 50 Amp Automatic Transfer Switch (AC/DC)
Powermax 50 Amp Automatic Transfer Switch (AC/DC)
Trimetric Battery Monitor (top left), TriStar Solar Controller Remote Display (top right), and Samlex Inverter Remote ON/OF Switch (bottom)
For detailed information click here .
